A Disc Brake REAR Kit: 70-74 F - Slotted & Drilled - Staggered

For the GM 10 or 12 bolt REAR ..staggered Shock..

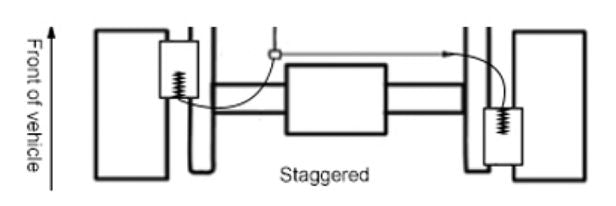

Staggered Caliper fitment., LHS is forward.. RHS is rear of the diff.

COMES with SLOTTED & DRILLED ROTORS

Newly released 70-74 Camaro, Firebird TA rear disc conversion kit with cables and all new parts with hardware.

• This is for staggered rear shocks.
•
• • .again this is for cars with staggered rear shocks.
  • CHECK VIA PHONE OR EMAIL for stock updates please, if we are sold out its about 3 weeks wait.
  • Delivery additional. NO Post.
  • WHEN bleeding the system BEFORE filling and pressuring it.. take out the stop light switch and fit up the temporary PVTool. Look it up if you are unsure otherwise your 90% chance of stuffing the Prop Valve.  We provide a PVTool with each kit.
  • You will need a large bore master cylinder and a disc/disc proportioning valve.
  • The 2nd Gen Camaro & Firebird TA (1970-74) rear disc brake kit provides an easy to install, bolt on solution for upgrading your cars 10 or 12 bolt rear-end to disc brake performance. This should improve your stopping performance from drums to 11" vented and drilled rotors!
  • If you don't have staggered shocks do not purchase this kit.
  • Proportioning valve use PV4K2 & Master use PW10104.
  • OR the MC & PV kit # PW17984C is best value.

  Rear calipers that have an internal parking brake with a lever can be troublesome. These calipers must be adjusted so that the piston is moved out and the pads are close to the rotor. If this initial adjustment is not made the pistons will travel outward during activation but no squeezing of the rotor will occur. This can be checked by clamping off the rear hoses and checking if the pedal gets better. Adjust as necessary.

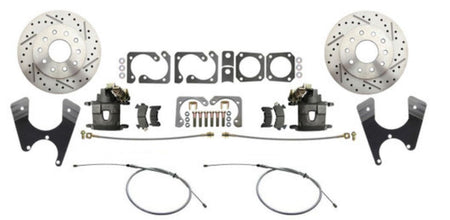

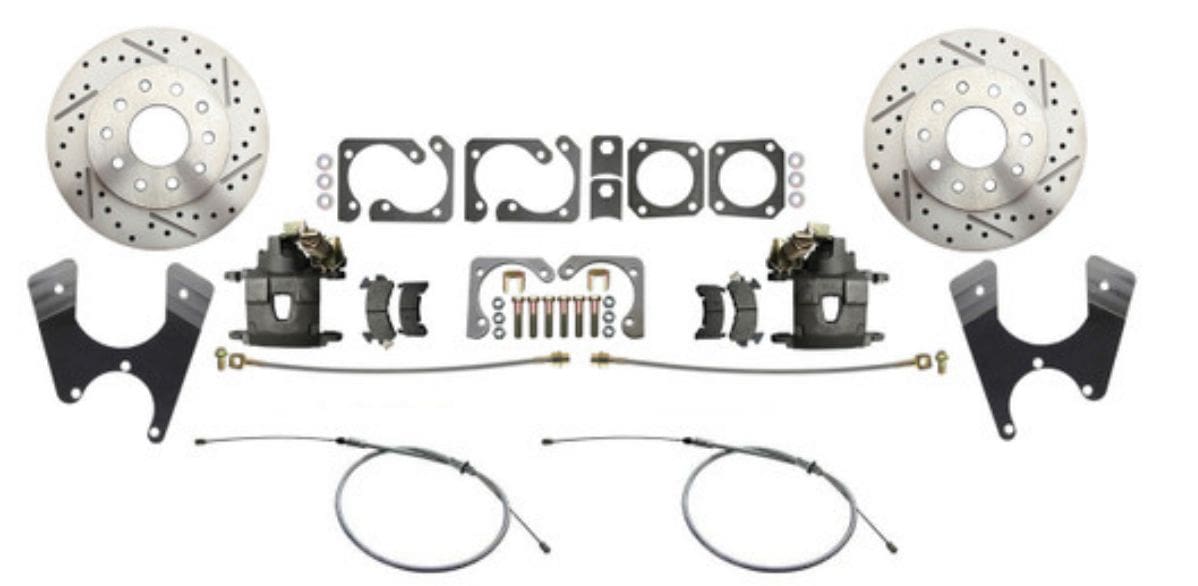

  Complete Rear Disc Brake Conversion Kit Includes:

• 11" GM Rotors Multi Pattern
• Fits 5x4.75" w/ 7/16 Studs & 5x4.5" w/ 1/2 Studs
• Large GM Large Bore Single Piston Calipers w/ Self Adjusting park-Brake
• Pads Included (which are GM normal use widely available)
• Caliper Brackets & Spacers
• Bracket Hardware
• Flex Hoses & Clips
• Park Brake Cables
