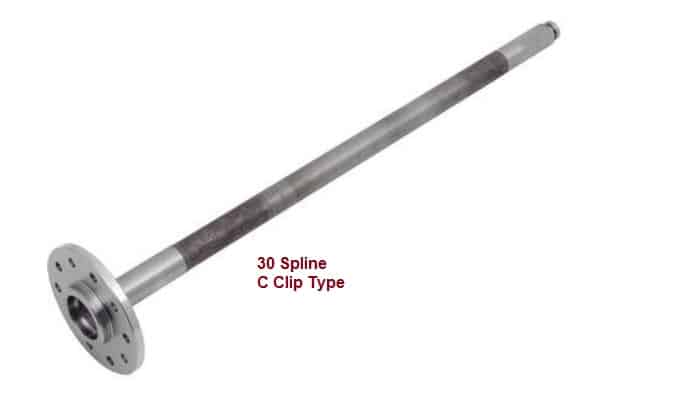

Axle: 12 bolt 70-81F + 30 spline- 30 1/16th C clip type (EA)
Brand new 70-81 Camaro & 68-72 El Camino/ Chevelle GM forged steel original equipment replacement rear axles.
Supplied Each ie ONE......individually or as a pair set.
This is a superior Mosier USA made product.. not an asian import, we are purposely... Each is the same size, LH & RH. We could supply a "no name" a bit cheaper but are preffering to stick to a quality for this one off job.
Delivery additional from $22 to $88 nation wide pro-rata ex Wollongong NSW.
This specific axle is:
- 30 Spline

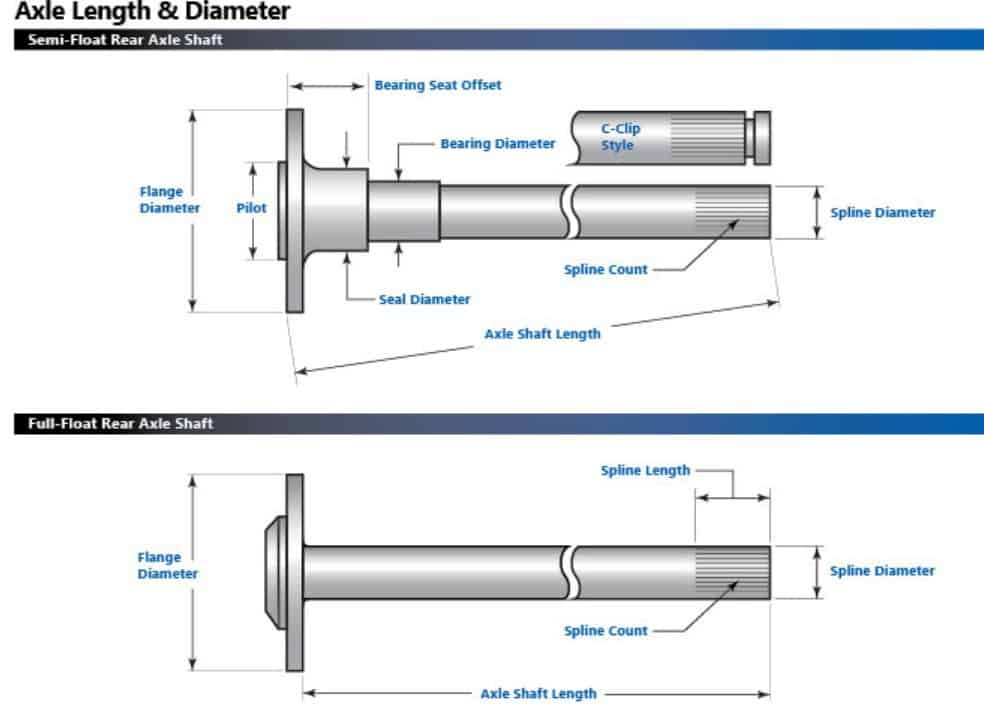

- 30 1/16th inches / 765mm - long from flat face where the drum seats to the end of the center end face.
- Designed for the 12 bolt series (make sure its a 12 bolt not a 10 bolt as they also have the same size axle but a different shaft thickness & not interchangable.
-
Model/Year Additional: 1968, 1969, 1970, 1971, 1972 Chevelle, El Camino & Monte Carlo
Bolt Pattern(s): (2) 5 x 4 ¾” (.480” Knurl press-in & 1/2” X 20 threaded)
Couldn't load pickup availability
Brand new 70-81 Camaro & 68-72 El Camino/ Chevelle GM forged steel original equipment replacement rear axles.
Supplied Each ie ONE......individually or as a pair set.
This is a superior Mosier USA made product.. not an asian import, we are purposely... Each is the same size, LH & RH. We could supply a "no name" a bit cheaper but are preffering to stick to a quality for this one off job.
Delivery additional from $22 to $88 nation wide pro-rata ex Wollongong NSW.
This specific axle is:
- 30 Spline
- 30 1/16th inches / 765mm - long from flat face where the drum seats to the end of the center end face.
- Designed for the 12 bolt series (make sure its a 12 bolt not a 10 bolt as they also have the same size axle but a different shaft thickness & not interchangable.
-
Model/Year Additional: 1968, 1969, 1970, 1971, 1972 Chevelle, El Camino & Monte Carlo
Bolt Pattern(s): (2) 5 x 4 ¾” (.480” Knurl press-in & 1/2” X 20 threaded)
