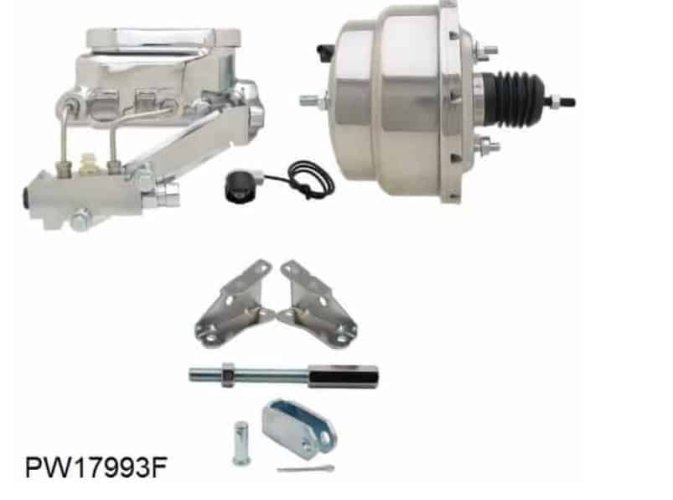

Brake Booster, Master, 8" Prop FLAT top kit (Disc/ Drum)

SKU: PW17993F
  • 1964-1972 GM A Body: Chevelle, GTO, Skylark.Cutlass
  • 1967-1969 F Body (Camaro, Firebird)
  • 1968-1974 Chevy Nova  with 4 bolt mount

You could use this bling kit with any of the front disc/ drum rear conversions offered here.

  • 8" Dual Chrome Power Brake Booster
  • Aluminum Chrome Flat Top Master Cylinder
  • Disc/ Drum Chrome Proportioning Valve
  • Left Mount Proportioning Valve Kit (2) 3/8"-24 For Front Brakes  & (1) 9/16"-18 For Rear Brakes
  • Valve bracket, Stainless Steel lines, & brake light warning switch, mounting hardware
  • Angle firewall brackets
  • Pedal rod extension & clevis
  • Delivery is NOT covered on booster/ master kits within Australia - please allow for $33 (Syn/Melb/Bris) to $88 (ie Darwin/Broome etc) pro rata ex Wollongong . We'll make contact and bill  you once its know where you want it set etc...no stress.
Application: Disc/ Drum

Master Cylinder Material: Aluminum
Master Cylinder Bail Type: Flat Top Screw Lid
Master Cylinder Finish: Aluminum Chrome
Master Cylinder Port Sizes: 9/16-20 & 1/2-20
Master Cylinder Built In Residual Valves: No
Master Cylinder Bore Size: 1" / 25.4mm
Proportioning Valve Type: Chrome
Proportioning Valve Location: Left Mount
Booster Bracket Finish: Chrome
Brake Booster Type: Vacuum Diaphram
Brake Booster Diameter: 8" Dual
Booster Brake Material: Steel
Brake Booster Finish: Chrome
Pedal Rod Included: Yes
Mounting Bracket Included: Yes
Application Notes:
Disc/ Drum applications direct bolt on.
No modifications needed for LH Drive



Regular price $743.65
