Brake Booster & Master Cyl, NEW 64-72 (8")

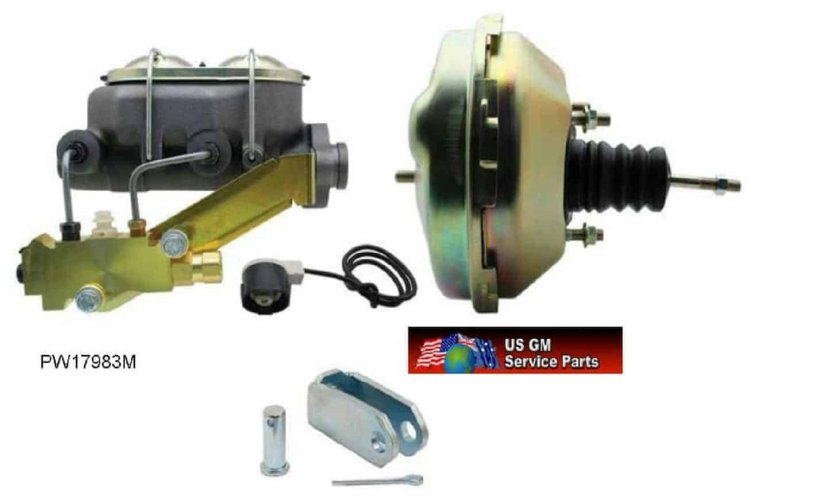

This kit runs a 8 inch Single Diaphram 4 bolt mount Booster with the mounts for the Disc / Drum or Disc /Disc needs with proportioning valve and lines as shown.

Select what configuration you need. 2 or 4 wheel disc brakes.

Suited for the

67-9 Camaro or Firebird Normal V8 or 6 engine with Disc brake front.

Same again for 64-72 GM A bodies ie GTO Chevelle, El Camino, GS etc.

Also for Chevy Nova 68-72 with its 4 bolt mount.

This is perched on an angled bracket as shown for early F bodies and GM A & X bodies and other vehicles as needed.

Ideal for engine bays now cramped by larger engines needing a bit more width room then the normal Factory 11 inch booster allowed.

If fitting up to a big block / big cam engine you WILL need a vacuum pump as big cams and power brakes don't aways mix. Various articales are available online covering this a bit.

Booster only also available.

Picture is 100% correct.

Lines exit to the LHS as shown.

NOTE: Normally a stock item.

Delivery is NOT covered on booster/ master kits within Australia -

Remember this has limited air storage.. especially on limited PSI engine output... you may need a vacuum pump to help maintain brakes. Seek Specialist License Brake Expert advice.
