Brake Booster & Master Cyl, NEW 64-72 (9")

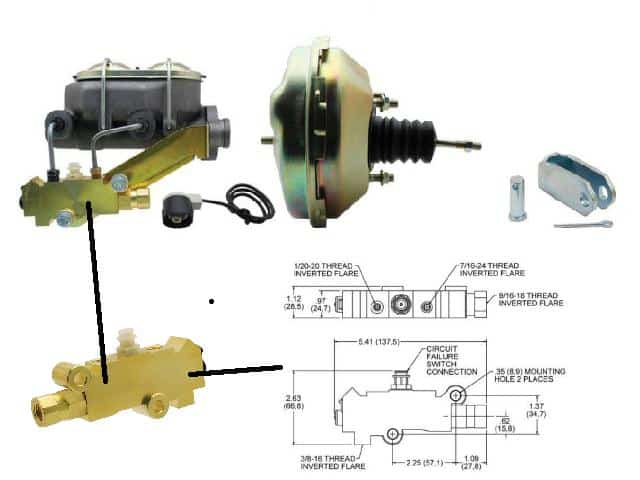

READ THE FULL DESCRIPTION ON THE LHS LOWER PAGE. HUGE use for this 4 bolt mount booster master set up. complete and designed off GM factory original. NINE INCH booster..... Single Diaphragm Booster with the mounts for the Disc / Drum or Disc /Disc needs with proportioning valve and lines as shown.
- Select what configuration you need. 2 or 4 wheel disc brakes.
- Suited for the 67-9 Camaro or Firebird Normal V8 or 6 engine with Disc brake front.
- Same again for 64-72 GM A bodies ie GTO Chevelle, El Camino, GS etc.
- Also for Chevy Nova 68-72 4 bolt mount
- This is perched on an angled bracket as shown for early F bodies and GM A & X bodies and other vehicles as needed.
- Ideal for engine bays now cramped by larger engines needing a bit more width room then the normal Factory 11 inch booster allowed.
- If fitting up to a big block / big cam engine you WILL need a vacuum pump as big cams and power brakes don't aways mix. Various articales are available online covering this a bit.
- Booster only also available.
- Picture is 100% correct.
- Lines exit to the LHS as shown.
Delivery is NOT covered on booster/ master kits within Australia, we will contact you with simple freight options depending on where its to go to and what speed of delivery.
Remember this 9" booster has limited air storage.. so if you have a big cam...especially on limited PSI engine output... you will need a vacuum pump to help maintain brakes. Seek Specialist License Brake Expert advice.Couldn't load pickup availability
