Disc Rotor: Front 69F +69-72A-GP /Chevelle

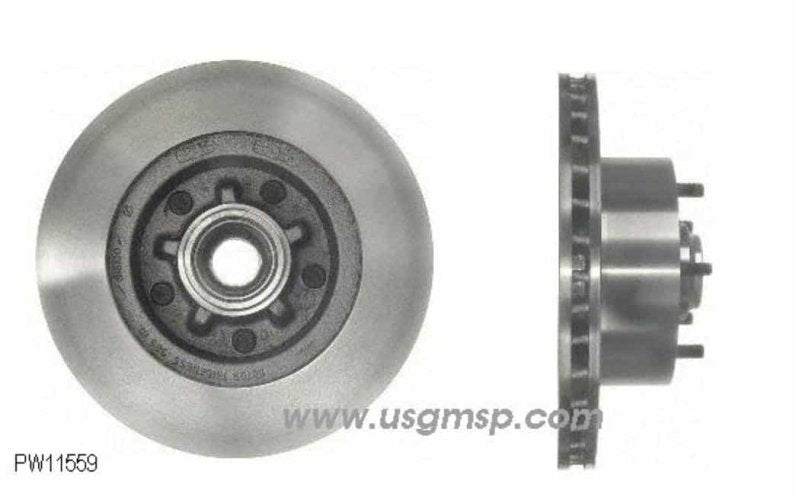

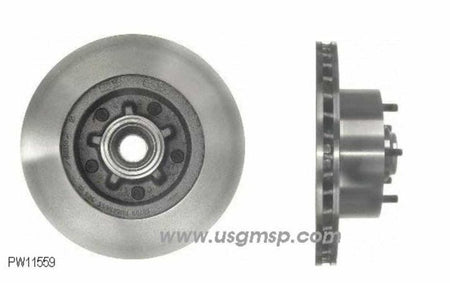

This is a brand new FRONT brake rotor...for the single piston 1969-72 style GM Disc brake system..... not expensive when you consider the alternative to running cheap on brakes.?
Keep in mind this is also retro fitted to '67 & '68 models where you find an original set of GM 1969 F front disc assemblies which also fit.
This fits:
- 69-72 Pontiac GTO & LeMans/ Grand Prix
- 69-72 Chevelle/ El Camino / Monte Carlo / Malibu
- 69 -72 Buick Gran Sport & Olds F85 / Cutlass / Vista Cruiser
- 69 Camaro
- 69 Firebird
| ABS Sensor Ring Included | No |
| Brake Surface Finish | Non-Directional |
| Cross Drilled | No |
| Discard Thickness (IN) | 0.96 |
| Discard Thickness (MM) | 24.5 |
| Drum-In-Hat Type Rotor | No |
| Height (IN) | 4 |
| Height (MM) | 101.7 |
| Inner Bearing Cup Included | Yes |
| Nominal Thickness (IN) | 1.04 |
| Nominal Thickness (MM) | 26.3 |
| Outer Bearing Cup Included | Yes |
| Outside Diameter (IN) | 10.97 |
| Outside Diameter (MM) | 278.6 |
| Rust Resistant Coating | No |
| Slotted | No |
| Solid Or Vented Type Rotor | Vented |
| Stud Quantity | 5 |
| Stud Size (IN) | 7/16-20 |
| Wheel Studs Included | Yes |
DELIVERY is additional on brake drums & Rotors due to dead weight. No viable Post COD as the cost is stupid from Australia Post. Email is estimated needed... pwdistribution@gmail.com
