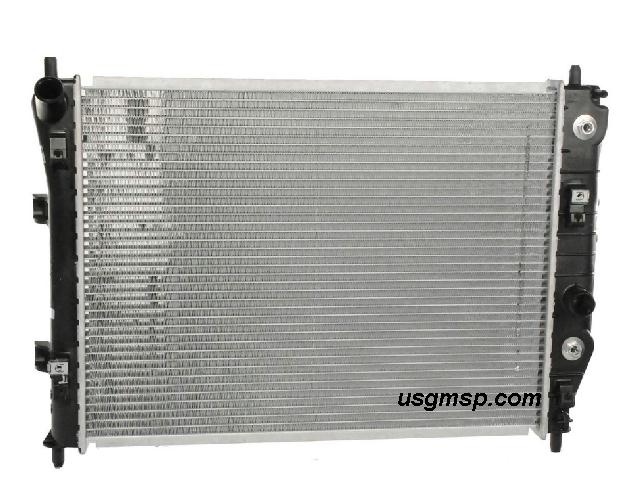

Radiator: Corvette 2005-2013 Manual 6 speed (GM) 7 LtrG
Brand new GM Delco Z06 factory replacement radiator the 2005-2013 7 lt r - Manual 6 speed Corvette
Special order only .. allow 10 - 24 days in inbound sequence with our loadings.
Delivery Additional.
Exc Eng OIL COOLER(KPS);
CORE SIZE
CORE SIZE 23 3/8 X 15 X 1 5/16
Z06
| Core Height (IN) | 17.236 |
| Core Height (MM) | 437.8 |
| Core Material | Aluminum |
| Core Row Quantity | 1 |
| Core Thickness (IN) | 0.9252 |
| Core Thickness (MM) | 23.5 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Engine Oil Cooler Included | No |
| Inlet Diameter (IN) | 1.294 |
| Inlet Diameter (MM) | 32.86 |
| Inlet Header Length (IN) | 18.563 |
| Inlet Header Length (MM) | 471.5 |
| Inlet Header Width (IN) | 1.5354 |
| Inlet Header Width (MM) | 39 |
| Integral Engine Oil Cooler | No |
| Integral Transmission Oil Cooler | Yes |
| Mounting Type | Pin and Bushing |
| Outlet Diameter (IN) | 1.277 |
| Outlet Diameter (MM) | 32.44 |
| Outlet Header Length (IN) | 18.563 |
| Outlet Header Length (MM) | 471.5 |
| Outlet Header Width (IN) | 2.6067 |
| Outlet Header Width (MM) | 66.21 |
| Outlet Location | Lower right |
| Tank Material | Plastic |
| Transmission Oil Cooler Distance between Fittings (IN) | 11.496 |
| Transmission Oil Cooler Distance between Fittings (MM) | 292 |
| Transmission Oil Cooler Fitting Diameter (IN) | 0.375 |
| Transmission Oil Cooler Fitting Diameter (mm) | 9.525 |
| Transmission Oil Cooler Fitting Type | Quick Connect |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | PLATE |
| Width (MM) | 707.58 |
Regular price
$1,155.60
Couldn't load pickup availability
Brand new GM Delco Z06 factory replacement radiator the 2005-2013 7 lt r - Manual 6 speed Corvette
Special order only .. allow 10 - 24 days in inbound sequence with our loadings.
Delivery Additional.
Exc Eng OIL COOLER(KPS);
CORE SIZE
CORE SIZE 23 3/8 X 15 X 1 5/16
Z06
| Core Height (IN) | 17.236 |
| Core Height (MM) | 437.8 |
| Core Material | Aluminum |
| Core Row Quantity | 1 |
| Core Thickness (IN) | 0.9252 |
| Core Thickness (MM) | 23.5 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Engine Oil Cooler Included | No |
| Inlet Diameter (IN) | 1.294 |
| Inlet Diameter (MM) | 32.86 |
| Inlet Header Length (IN) | 18.563 |
| Inlet Header Length (MM) | 471.5 |
| Inlet Header Width (IN) | 1.5354 |
| Inlet Header Width (MM) | 39 |
| Integral Engine Oil Cooler | No |
| Integral Transmission Oil Cooler | Yes |
| Mounting Type | Pin and Bushing |
| Outlet Diameter (IN) | 1.277 |
| Outlet Diameter (MM) | 32.44 |
| Outlet Header Length (IN) | 18.563 |
| Outlet Header Length (MM) | 471.5 |
| Outlet Header Width (IN) | 2.6067 |
| Outlet Header Width (MM) | 66.21 |
| Outlet Location | Lower right |
| Tank Material | Plastic |
| Transmission Oil Cooler Distance between Fittings (IN) | 11.496 |
| Transmission Oil Cooler Distance between Fittings (MM) | 292 |
| Transmission Oil Cooler Fitting Diameter (IN) | 0.375 |
| Transmission Oil Cooler Fitting Diameter (mm) | 9.525 |
| Transmission Oil Cooler Fitting Type | Quick Connect |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | PLATE |
| Width (MM) | 707.58 |
