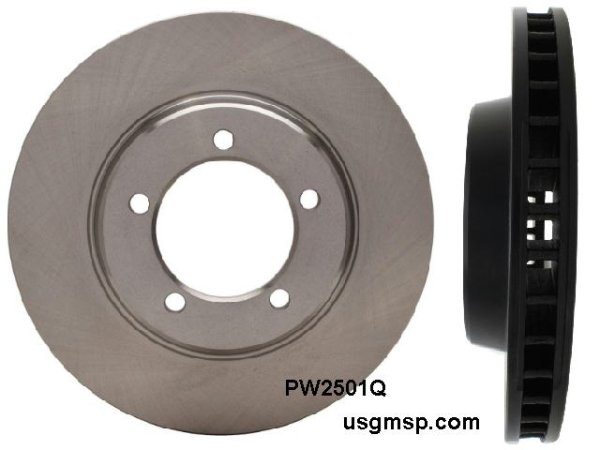

Disc Rotor: 67-70 Full size - ROTOR ONLY (each) - Rare serivce part
This is a pretty special disc rotor. Most people may not know of them but they're designed like the TWO PEICE rotors of the other GM 67-68 era FACTORY disc brake cars..
THE HUB bolts to this replacement service part rotor.
Around 2008 a ONE PEICE kit came out but is quite expensive. This is JUST the rotor is your hub is ok.
ALSO to make it a bit more confusing for people who have only brought there cars with front disc already fitted.. that are ONE PEICE.. yours may also disc upgrade kit rotor.
SIZE MATTERS TO ID THIS . its regarded as 12 inch / 300mm rotor.. NOT 11 as most aftermarket kits were.
DELIVERY ADDITIONAL.. about $36.. which we will sort out when we know where the need to go to.
| olt Circle Diameter (IN) | 4.752 |
| Bolt Circle Diameter (MM) | 120.700 |
| Disc Mounting | Behind the Hub |
| Discard Thickness (IN) | 1.215 |
| Discard Thickness (MM) | 30.860 |
| Hat Finish | Coated |
| Misc Holes | 0 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness (IN) | 1.299 |
| Nominal Thickness (MM) | 33.000 |
| Outside Diameter (IN) | 11.772 |
| Outside Diameter (MM) | 299.000 |
| Overall Height (IN) | 2.362 |
| Overall Height (MM) | 60.000 |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| CHEVROLET | BEL AIR | 1967-1970 |
| CHEVROLET | BISCAYNE | 1967-1969 |
| CHEVROLET | BROOKWOOD | 1969 |
| CHEVROLET | CAPRICE | 1967-1970 |
| CHEVROLET | IMPALA | 1967-1970 |
