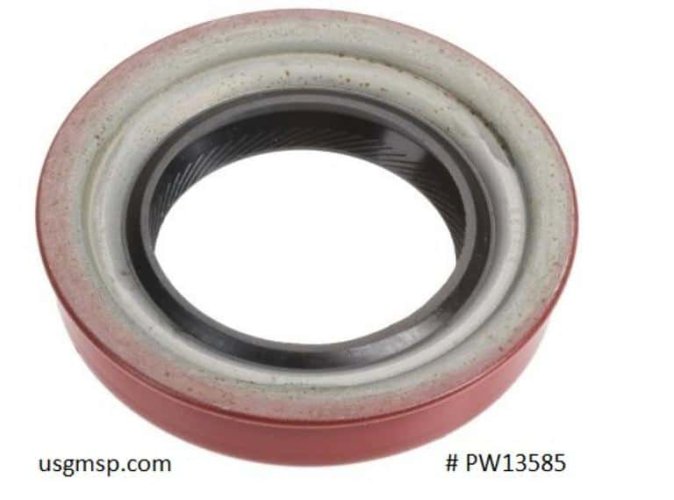

Seal: Trans Manual 58-02 Various
For the Manual transmission output shaft.. where the tail shaft YOKE goes into the rear of the manual gearbox. Shaft Size; 3.5 in. Bore; 3.6 in. Outer Diam; .35 in. Width. Check your box first. More then one size seal is possible but not proven. This is the main seal.
Standard design OE replacement seal Suits:
Manual trans.; 3 speed trans.; Tremec 160T
Manual trans.; 4 speed trans.; GMC Saginaw
Manual trans.; 3 speed trans.; GMC SM326
Manual trans.; 4 speed trans.; GMC Muncie; 27 Spline
| BUICK | 1959-1992 |
| CADILLAC | 1958-1992 |
| CHEVROLET | 1955-2002 |
| OLDSMOBILE | 1961-1992 |
| PONTIAC | 1955-2002 |
