Sensor: Engine Coolant Temp Gauge 82-92

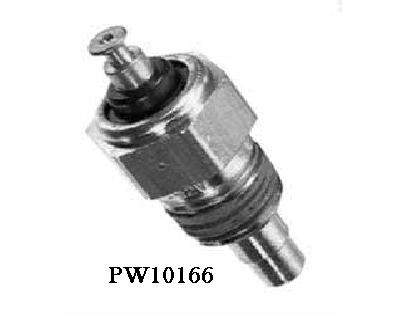

This temperature sensor is positioned on the left-hand side of the V8 engine head. It features a single collar "T" type terminal, commonly known as a spade, as illustrated below. Replacement units typically include a T-to-spade wire shield if required. The sensor has a 17mm thread size.

Fits all versions of V8 Camaro & Firebird TA from 1982-92. Expensive little critter....!

Also fits 1988-92 Corvette.

Fits Camaro & Firebird.. as follows..

(F & 8 code is TPI), S is Cross Fire, G & H is Carby. )

• 1992 V6-189ci 3.1L F/I Vin T
• 1992 V8-305ci 5.0L F/I Vin E
• 1992 V8-305ci 5.0L F/I Vin F
• 1991 V8-350ci 5.7L F/I Vin 8
• 1991 V6-189ci 3.1L F/I Vin T
• 1991 V8-305ci 5.0L F/I Vin E
• 1991 V8-305ci 5.0L F/I Vin F
• 1990 V6-189ci 3.1L F/I Vin T
• 1990 V8-305ci 5.0L F/I Vin E
• 1990 V8-305ci 5.0L F/I Vin F
• 1989 V6-173ci 2.8L F/I Vin S
• 1989 V8-305ci 5.0L F/I Vin E
• 1989 V8-350ci 5.7L F/I Vin 8
• 1989 V6-231ci 3.8L F/I Turbo Vin 7
• 1986 L4-151ci 2.5L F/I Vin 2
• 1986 V6-173ci 2.8L F/I Vin S
• 1986 V8-305ci 5.0L 4 BBL Vin G
• 1986 V8-305ci 5.0L F/I Vin F
• 1986 V8-305ci 5.0L 4 BBL Vin H
• 1982 L4-151ci 2.5L F/I Vin 2
• 1982 V6-173ci 2.8L 2 BBL Vin 1
• 1982 V8-305ci 5.0L 4 BBL Vin H
• 1982 V8-305ci 5.0L F/I Vin 7
• 1990-95 Corvette
