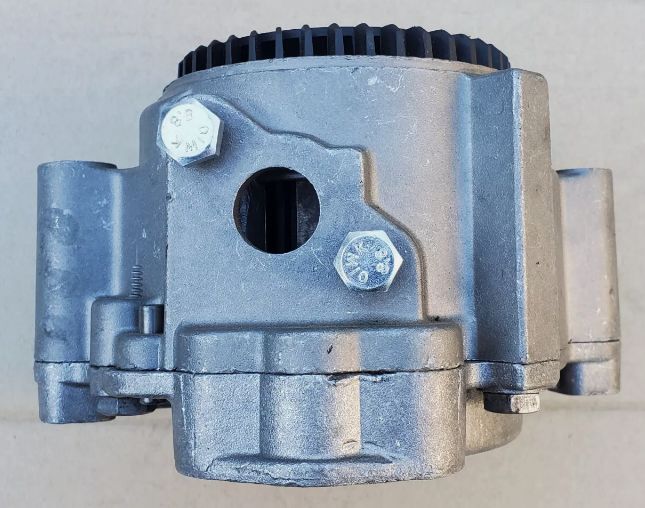

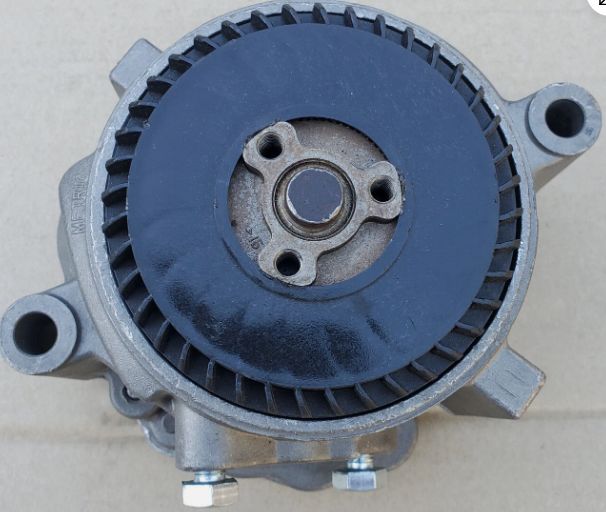

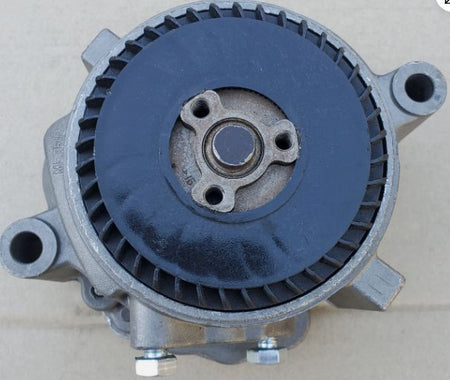

Smog / Air Pump V8 1986 & 87 (AF)

Smog pump.. As of 2025, the availability of these pumps has become significantly limited and costly in the commercial market. Please inquire before placing an order.

This pump is also known as the AIR PUMP, usually located on the front RHS of the V8.

• Make sure to test your Air Pump Check Valve for proper operation. A defective check valve will allow harmful exhaust gases to enter and destroy a new Air Pump.

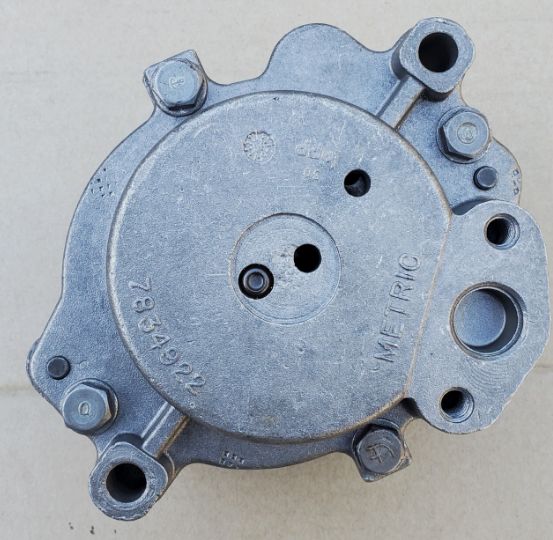

THIS IS AN METRIC THREAD PUMP.. HAS "METRIC" on the back housing.  Do LOOK at yours before ordering.

Should have cast on the rear #7834922"

These are a quality reliable USA remanufactured pumps.

• No exchange necessary.
•   NOTE THIS FITS 86 & 87 Camaro
•   THIS FITS 86 Firebird ONLY.. not 87 & some Corvettes.

• A NOTE ON SMOG PUMP CARE.... Preventing Smog Pump Seizures

  Smog Pump failure is usually caused by Gasoline, exhaust fumes, oil, or water entering the unit contaminates the bearing grease causing bearing failure.

  Before installing replacement unit, test check valve(s) for proper operation. Air should pass through valve only in one direction. These valves prevent exhaust gases from entering the unit. DO NOT install pump with a defective check valve. Check the PCV system for proper operation.

  An inoperative or defective PCV system allows oil and gas fumes to enter Smog Pump, causing bearing failure.

  Water contamination causes bearing corrosion, internal component damage, or housing failure. To help prevent this problem, carefully inspect all hoses, make sure fittings are secure, pump filters are not clogged, and the fan is not damaged. Be careful when washing the engine and, on low-mounted units, avoid driving through high water.

•  NOTE: Remanufactured AIR PUMPS are tight when first supplied and require an average
  500 mile run in period during which time noise can be expected from the new unit.
  DO NOT OIL or greese the unit.. so not wash or hose the pumps ever.
• Cover pump when washing motor.
