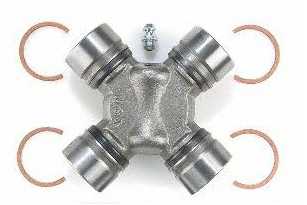

Uni Joint: 82-87 Firebird TA Camaro Front & Rear

READ DESCTRIPION on LHS lower page 1st.  New Front or Rear uni joint for the 5lt or 5.7 lt 1985 thru 1987 Firebird Trans Am & Camaro. This is for cars with INSIDE SNAP RINGS.. as most all of them are. Also identified with the grease nipple in the housing.. NOT in the end cap. .. if yours has a grease nipple in the end cap.. choose the 1982-86 type of Uni.  Used on Front and Rear driveshafts.

SPECS
Bearing Cap Axis 1 Diameter	1.125 IN
Bearing Cap Axis 1 Diameter	28.5 mm
Bearing Cap Axis 2 Diameter	1.125 IN
Bearing Cap Axis 2 Diameter	28.6 mm
Bearing Cap Type	4 Grooved Round Bearings
Greaseable	Yes
Length Axis 1	2.433 IN
Length Axis 1	61.798 mm
Length Axis 2	2.433 IN
Length Axis 2	61.798 mm
Length Measurement A	Outside of Groove to Outside of Groove
Length Measurement B	Inside of Groove to Inside of Groove plus thickness of 2 Lock Rings
Lube Fitting Location	Regular Lube Fitting in Cross
OE Series	Mechanics 3, Saginaw 44 and American Axle 1344
Part Description	Universal Joint
U-Joint Identification	4 Grooved Round Bearings
