Yoke: drive shaft Powerglide/ T350/ MT +++ 27 spline

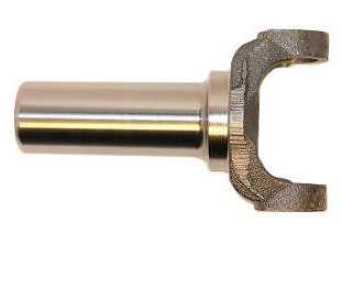

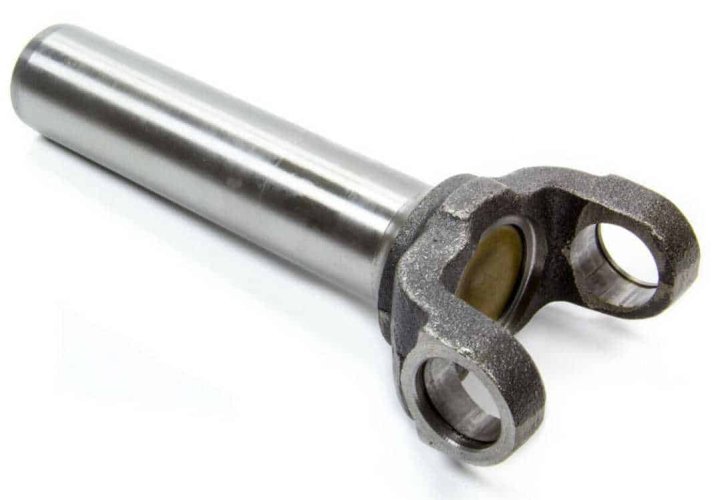

Brand new drive shaft to Gearbox .. Turbo 350 Auto.. Yoke for 27 Spline Transmissions.
This yoke accepts 1310 series u-joints, which have 1 1/16" outside diameter cups and measure 3 7/32" wide to the outside of the cups.
The following transmissions have 27 spline output shafts:
- Powerglide
- Saginaw 3 Speed
- Saginaw 4 Speed
- Muncie 4 Speed
- Borg Warner T-4
- GM Borg Warner T-5
- GM T-350
- GM TH-350
- GM T-56
- 700R
- 700R4
- 4L60
- 4L60E
- 4L70E
- 4LL0E
- 200 Metric
- Brinn
- Bert
- Falcon
Yoke Features:
- Spline Length: 4 1/2"
- Total Length: 5 1/2" (measured from the center of the u-joint to the end of the yoke)
- Accepts: 1310 Series U-Joints
- 1 1/16" U-Joint Cup O.D.
- 3 7/32" U-Joint Width (measured outside-of-cup to outside-of-cup)
- External Clips
